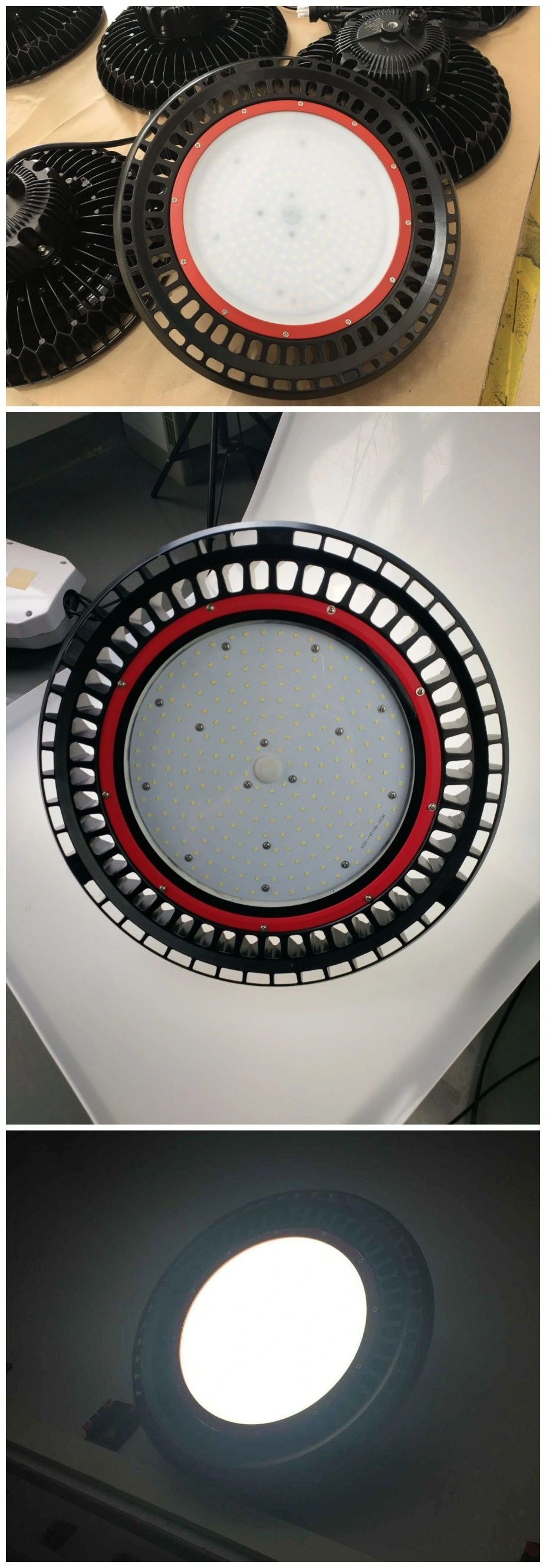

LED Ceiling Light 250W UFO LED High Bay Light IP65 LED High Bay Light
Product Description
LED Ceiling Light 250W UFO LED High Bay Light IP65 LED High Bay Light
Specifications of 250W UFO LED high bay Light :
The followings are primary competitive advantages of our UFO LED high bay lights.1. Adopted sheet-metal pure aluminum radiators for heat dissipation, copper cylinder for heat conduction, with compact dimensions and low weight.
2. The highest temperature of LED chips welding spot is 70 ºC, the highest temperature of heat sinks is 55 ºC, very good heat dissipation, small light failure, greatly improve the working life of the light fixtures.
3. Adopted SMD3030 LED chips,Meanwell HBG Power drivers, the lumen efficiency of whole lamps reach 130-135lm/W, 45/60/90/120 degree beam angles are available.
4. Several installation ways: Hanging hook, Hanging ring,Angle adjustable.
Installation information of 100W UFO LED High Bay Light :1. Check all the parts and accessories of UFO LED High bay light ;
2. Must cut off the power supply before installation ;
3. Make sure the light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power ;
5. When the UFO highbay light is working, it must be kept vertical downward .

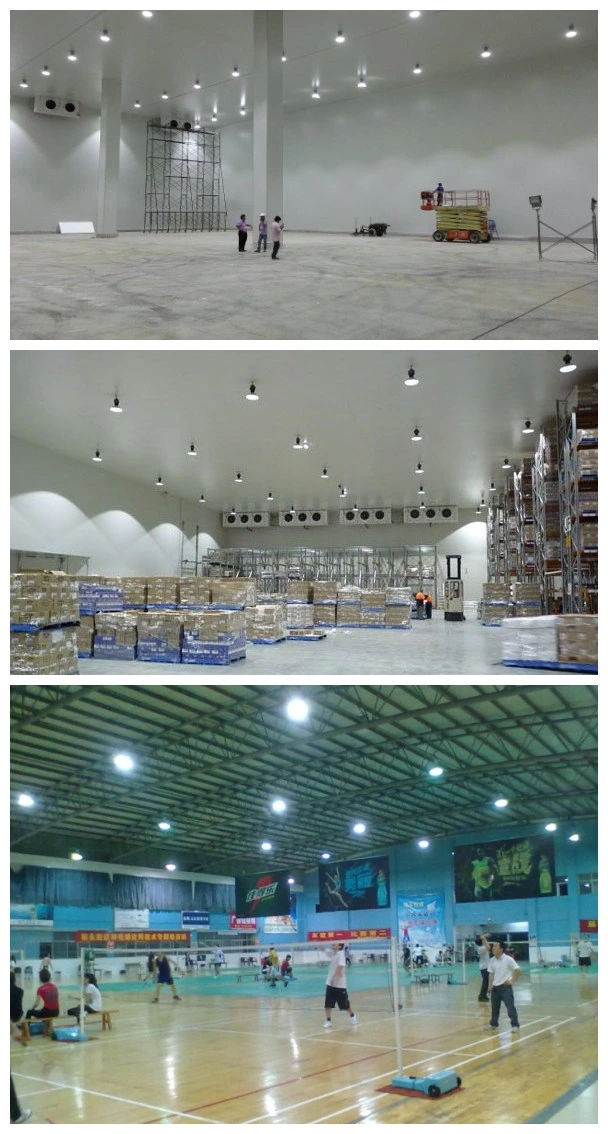

Applications of UFO LED high bay Light :
We provide good product and perfect lighting solution manufacture.
Application: Stadium, Workshop, Warehouse, exhibition hall etc.
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.

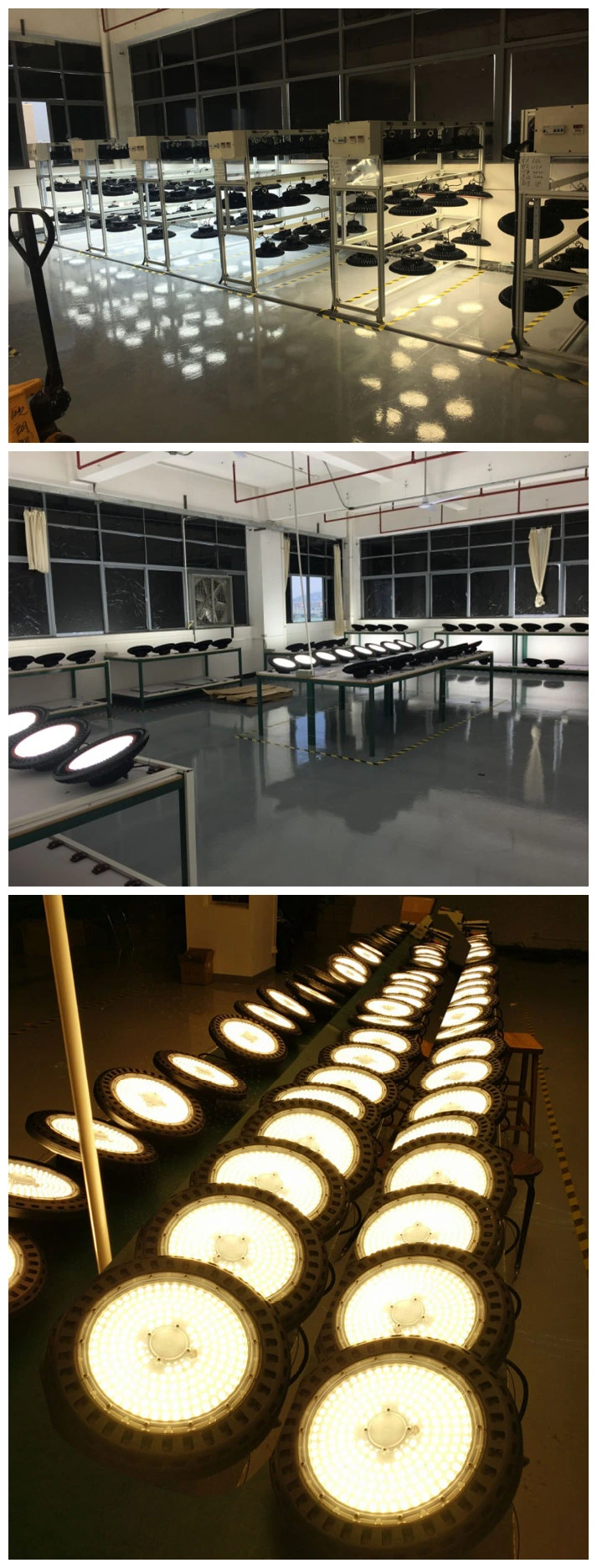

Strict Tests of industrial led high bay lighting :Before shipping, all our UFO LED high bay lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Packaging of UFO LED High Bay Lighting:Our individual package maximize protecting the UFO high bay LED Lights from transfer damage in transit.
1.Label on backside of each UFO LED high bay lights and your required label is available.
2.One piece UFO led high bay Light per carton.
3.This is our regular packing of the UFO led high bay light,if you need,we can also custom color packing and put your logo on it.
Shipping of UFO high bay light LED : By sea / air / express (DHL,FedEX,UPS,TNT etc.)Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Small quantity advised to be shipped by air.
Rayborn Good Service :
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
Company Information :
Rayborn Lighting Industry Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including LED Flood Light,Led Tunnel Light,Led High Bay light,Led Ceiling light,LED Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ: 1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many UFO Led High bay Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team. Contact us if you need more details on LED High Bay Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED High Bay Lamp、LED High Bay Lighting. If these products fail to match your need, please contact us and we would like to provide relevant information.
Specifications of 250W UFO LED high bay Light :
| 250W LED High Bay-90D | |||
| Item No.: | RB-HB-250WU2 | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| LED Chip: | Lumileds Chip | ||
| Power Driver: | Meanwell | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >93% | ||
| Luminous Efficiency: | 130LM/W | ||
| LED Power | 240W | ||
| LED QTY: | 343pcs 3030SMD | ||
| LED Working Voltage: | DC 42~48V | ||
| System Consumption: | 243W | ||
| LIGHT Luminous Flux | Warm White | 30000LM | |
| Pure White | 30700LM | ||
| Cool White | 31000LM | ||
| Viewing Angle: | 120/90/60 degree | ||
| Center Luminance | Height 3M | 4728LUX | |
| Height 4M | 2659LUX | ||
| Height 5M | 1702LUX | ||
| Illuminance Area | Height 3M | Dia.267CM points visible | |
| Height 4M | Dia.356CM points visible | ||
| Height 5M | Dia.445CM points visible | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 4000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -35ºC~65ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 m three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate | CE/ETL/SAA/RoHS | ||
| Size: | Ф400*H170 | ||
| Net Weight: | 6.3KG | ||
| Packaging | 45.5*45.5*22.5cm | ||
The followings are primary competitive advantages of our UFO LED high bay lights.1. Adopted sheet-metal pure aluminum radiators for heat dissipation, copper cylinder for heat conduction, with compact dimensions and low weight.2. The highest temperature of LED chips welding spot is 70 ºC, the highest temperature of heat sinks is 55 ºC, very good heat dissipation, small light failure, greatly improve the working life of the light fixtures.
3. Adopted SMD3030 LED chips,Meanwell HBG Power drivers, the lumen efficiency of whole lamps reach 130-135lm/W, 45/60/90/120 degree beam angles are available.
4. Several installation ways: Hanging hook, Hanging ring,Angle adjustable.
Installation information of 100W UFO LED High Bay Light :1. Check all the parts and accessories of UFO LED High bay light ;
2. Must cut off the power supply before installation ;
3. Make sure the light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power ;
5. When the UFO highbay light is working, it must be kept vertical downward .
Applications of UFO LED high bay Light :
We provide good product and perfect lighting solution manufacture.
Application: Stadium, Workshop, Warehouse, exhibition hall etc.
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
Strict Tests of industrial led high bay lighting :Before shipping, all our UFO LED high bay lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.Packaging of UFO LED High Bay Lighting:Our individual package maximize protecting the UFO high bay LED Lights from transfer damage in transit.1.Label on backside of each UFO LED high bay lights and your required label is available.
2.One piece UFO led high bay Light per carton.
3.This is our regular packing of the UFO led high bay light,if you need,we can also custom color packing and put your logo on it.
Shipping of UFO high bay light LED : By sea / air / express (DHL,FedEX,UPS,TNT etc.)Big quantity advised to be shipped by sea.Samples advised to be shipped by express.
Small quantity advised to be shipped by air.
Rayborn Good Service :
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
Company Information :
Rayborn Lighting Industry Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including LED Flood Light,Led Tunnel Light,Led High Bay light,Led Ceiling light,LED Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ: 1. What is the general business process?Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many UFO Led High bay Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team. Contact us if you need more details on LED High Bay Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED High Bay Lamp、LED High Bay Lighting. If these products fail to match your need, please contact us and we would like to provide relevant information.
