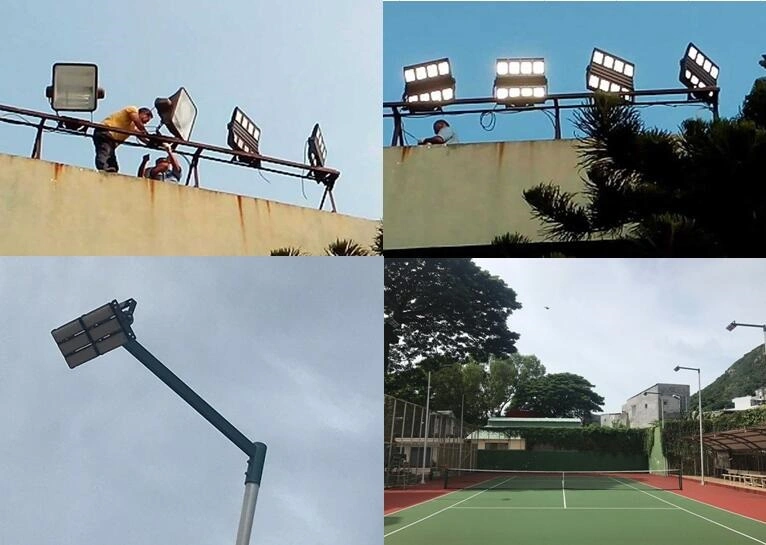

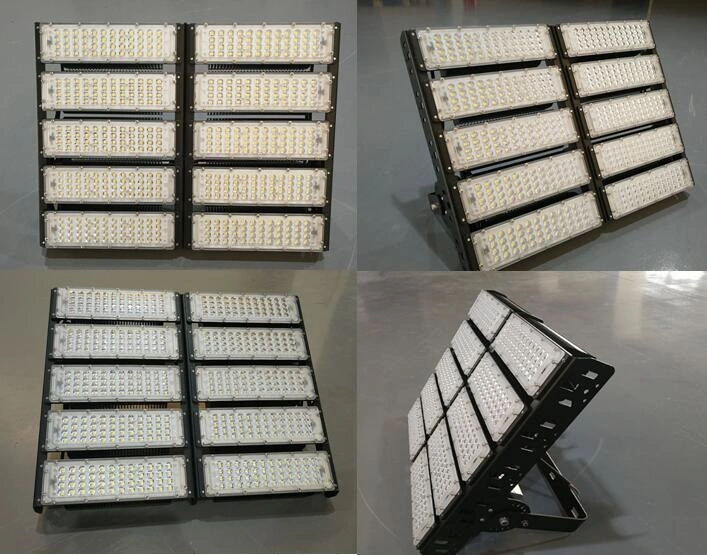

Dali Dimming 400W 500W LED Flood Light for Tennis Court
500W LED Floodlight Main Technical Parameters
Item No.: RB-FLL-500WSD
Input Voltage: AC100-277V
Freqency Range: 50Hz~60Hz
Power Factor: >0.98
Power Efficiency: >90%
LED Power: 500W
Lamp Driver: Meanwell
LED Chip: SMD3030
LED Luminous Efficiency: 140LM/W
System Consumption: 500W ± 10%
Lamp Luminous Flux: 55000LM ± 500LM
Viewing Angle: 60/90/60*150degree
Illuminance Uniformity: >0.6
Color Temperature: Warm White 3000K~3300K, Pure White 5500K~5700K, Cool White 6000K~6500K
Color Rendering Index: Ra>80
Light Distribution: LED points visible
LED Junction Temperature: ≤ 115
Working Temperature: 40~50
IP Grade: IP65
Working Life-span: 50000 H
Power Line: 1.0 m three line
Connect Wire: Brown L, Blue N, Yellow / Green G
|500W LED Floodlight Main Technical Parameters|
|Input Voltage:||AC 100-277V|
|Lamp Driver||Meanwell HLG*2PCS|
|LED Working Voltage:||DC36~42V|
|LED Luminous Flux||Warm White||54000LM|
|Color Temperature||Warm White||3000K~3500K|
|Color Rendering Index||Ra>80|
|Light Distribution:||LED points visible|
|Light Design:||LED+The secondary light distribution lens|
|LED Junction Temperature:||≤115ºC|
|Working Life-span:||50000 H|
|Power Line:||1.0 m three line|
|Yellow / Green||G|
|The color of the lamp shell||Black|
|Certificates||CE ROHS UL|
500w LED FLood Light Features:
LED Flood Light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage:
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.
3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, All the leakage screw material is 3014 stainless steel, and frame is hex screws.
6, waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150 degree, no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
Competitive Advantages of LED Flood Light
LED Chip: 3030 LED Chips which is one of the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: SUNPER LED flood light use Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Finned radiator aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: Silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 3 years. Free replacement is available during 3 years warranty under normal usaging.
Certification: DLC FCC CE RoHS EMC LVD approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Strict tests for led flood light:
All of our products must go through many strict tests before shipping, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.
Applications of led flood light:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Installation information of led flood light:
1. Check all the parts and accessories of LED Flood Lights;
2. Must cut off the power supply before installation;
3. Make sure LED flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the flood lamp is working, it must be kept vertical downward.
Our Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours
2. All your inquireies will be well explained by our experienced staff
3. OEM & ODM, also provide customized service
4. Distributor ship is available for your unique design and some our current models
5. We will keep secret for customer sale area, design ideas and all other private information
Packaging of LED Flood Lights :
|Item||Dimension||Carton Size||Gross Weight||Packaging|
|50w led flood light||315*93*130mm||33*22*22cm||4.9KG||2PCS/carton|
|100W led flood light||315*180*130mm||35*26*16cm||4.5KG||1PCS/carton|
|150W led flood light||315*270*130mm||35*31*16cm||5.5KG||1PCS/carton|
|200W led flood light||315*373*130mm||39*35*16cm||7KG||1PCS/carton|
|250W led flood light||315*463*130mm||55*35*16cm||8.9KG||1PCS/carton|
|300W led flood light||598*283*130mm||64*33*17cm||10.5KG||1PCS/carton|
|400W led flood light||598*373*130mm||64*44*19cm||13KG||1PCS/carton|
|500W led flood light||598*453*130mm||63*53*17cm||15KG||1PCS/carton|
Payment Terms and Delivery Time:
1. T/T 30% deposit and the balance paid completely before the delivery.
2. Lead time for 50~500pcs: 5-7days, 500~1000pcs: 7-15days. Samples 3 working days after getting the payment.
3. Shipment: DHL, UPS, EMS, Fedex, by air or by sea.
Warranty and Warranty terms:
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,LED High Bay Light,Led Ceiling light,LED Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED Panel Light,led
tube light, LED Downlight and so on. Outdoor lighting focus on led floodlight, LED Street Light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.
Price can be negotiable. We warmly welcome you to take some samples to test quality first.
Should you have any interest or further questions, please feel free to contact me at any time.
Hopefully we have a chance to cooperate with you.
Contact us if you need more details on 500W LED Flood Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 400W LED Flood Light、Tennis Court Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
