Home > Products > LED FLood Light > High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

Product Description

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light
Specifications:

Module LED Floodlight/Outdoor LED Flood lighting (10-1000W)
400W LED Floodlight Main Technical Parameters
Item No.:RB-FLL-400WSE
Input Voltage:AC 100-277V
Freqency Range:50Hz~60Hz
Power Factor:>0.98
Power Efficiency:>92%
Lamp DriverMeanwell
LED Chip:SMD3030/5050
LED Power400W
LED QTY: 384pcs
LED Working Voltage:DC36 ~42V
System Consumption:408W
LED Luminous FluxWarm White44000LM
Pure White47000LM
Cool White48000LM
Viewing Angle:30/60/90/80*140°
Illuminance Uniformity:>0.6
Color TemperatureWarm White3000K~3500K
Pure White5000K~5500K
Cool White6000K~6500K
Color Rendering IndexRa>80
Light Distribution:LED points visible
Light Design:LED+The secondary light distribution lens
LED Junction Temperature:≤115ºC
Working Temperature:-35ºC~55ºC
IP Grade:IP66
Working Life-span:50000 H
Power Line:1.0 mm three line
Connect WireBrownL
BlueN
Yellow / GreenG
The color of the lamp shellBlack /Grey
Size:695*435*65mm

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light
LED FLood Light Features :

LED Chip: SMD3030/5050 LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan, high quality.

Power Supply: SUPER LED Flood Light use Meanwell approved driver, IP66 and high quality, it improved lights performance. Power efficiency ≥92.

Color temperature: LED floodlight provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin helping to enhance a building's exterior.

Optics: Optical assembly hermetically sealed providing IP66.

Great light uniformity: LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.

Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.

Certification: FCC CE RoHS approval.

Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.


Full series 100W-1000W all are available :
High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

LED Flood light Competitive Advantage :

1.  High efficiency to meet rigorous photometric requirements.
2.  System rating 50,000 hours LM80 to reduce maintenance.
3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.
4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5.  Passed DesignLights Consortium qualifications.
6.  Vented housing design isolates LED module from driver for long life and improved performance.
7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.
8.  Adjustable mounting bracket allows you to direct light where you need it.
9.  IP66 Rated.

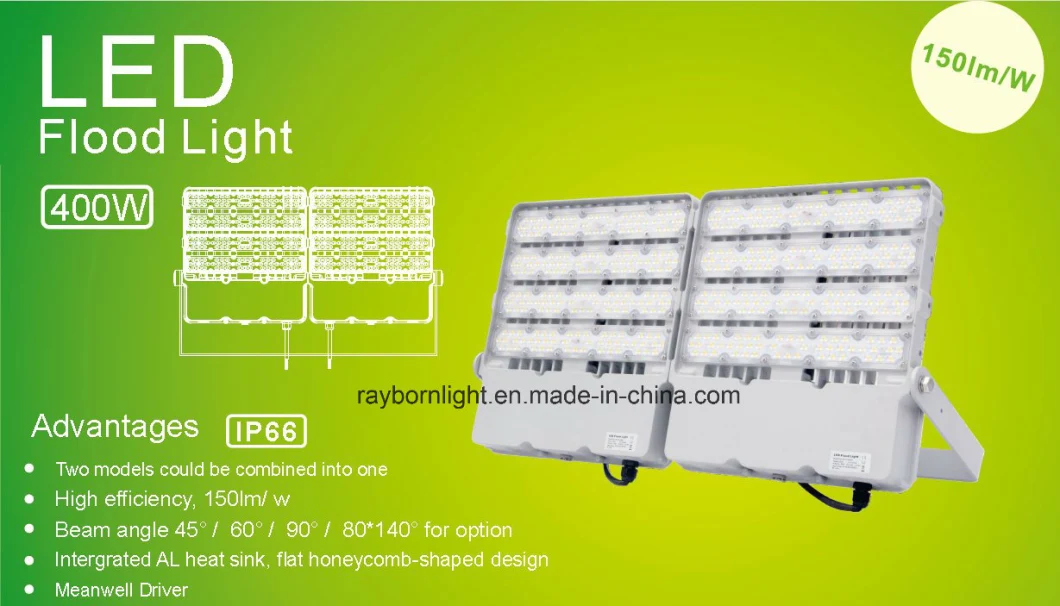

LED Flood Light Detailed :

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

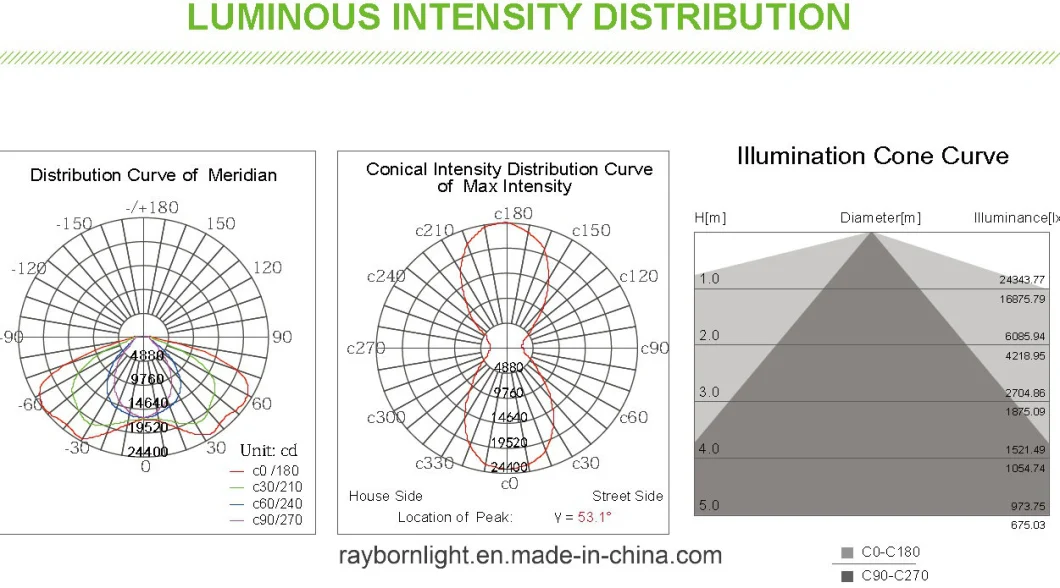

Luminous Intensity Distribution :

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light


LED Flood Light Dimension of 100W-1000W:

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

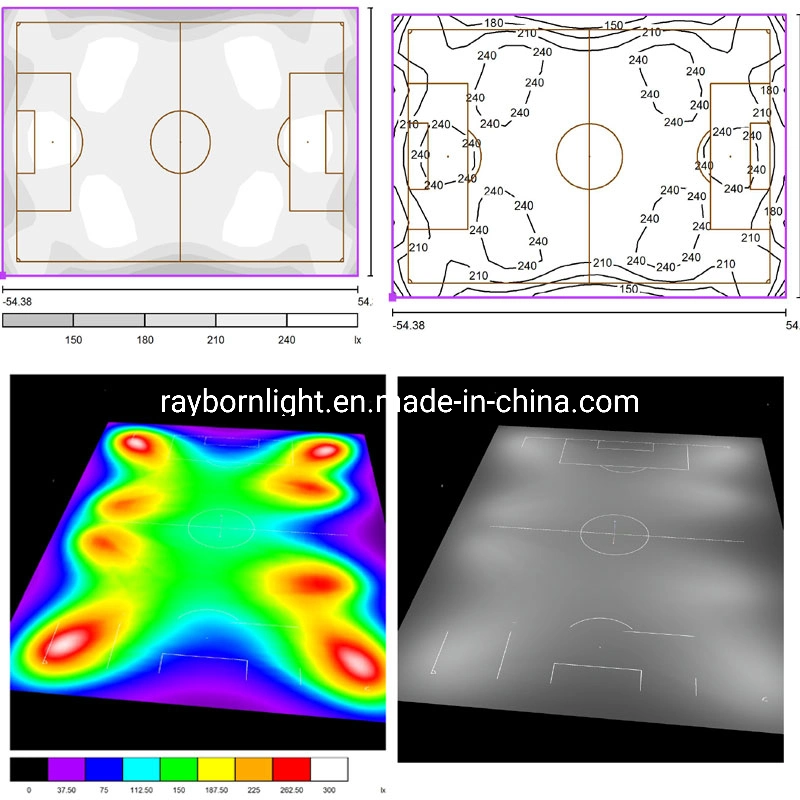

Professional Simulation of Stadium LED Flood Light :

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

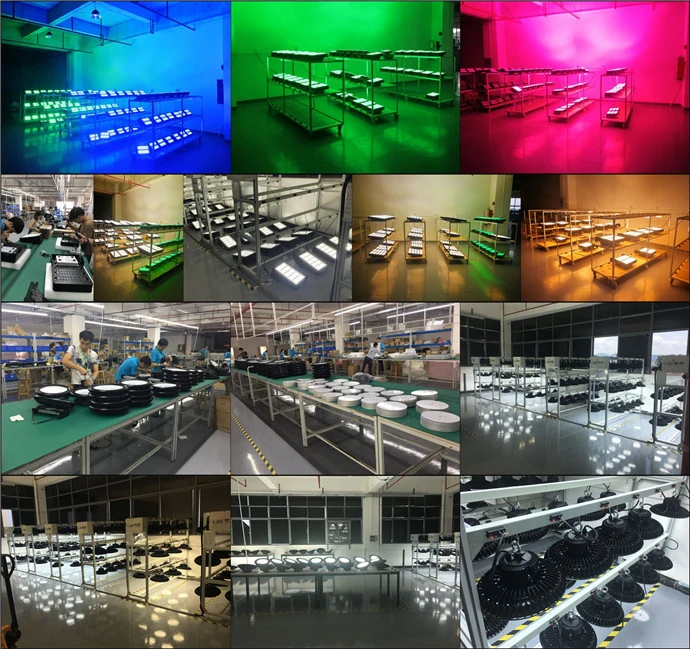

LED Flood Light over 24hours Aging Test :

Before shipping, all the LED Flood Lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

Outdoor LED Flood Light Applications:

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

Company Information:

      Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED Lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .

High Power 300W 400W 500W LED Outdoor Tennis Training Court Stadium High Mast Pole LED Flood Light

Payment terms:

1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities


FAQ:

1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance.                  For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.                  For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

8. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application.
               Secondly We quote according to your requirements or our suggestions.
               Thirdly customer confirms the samples and places deposit for formal order.
               Fourthly We arrange the production.

9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate

Contact us if you need more details on Football Stadium Lighting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tennis Court Light、Football Field Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
