Home > Products > LED FLood Light > High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting

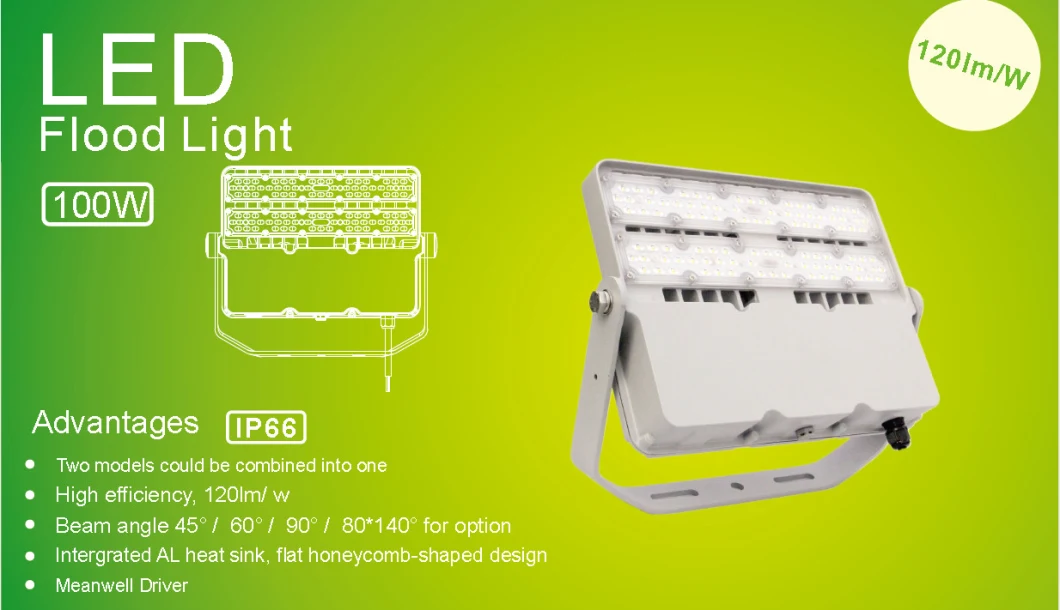

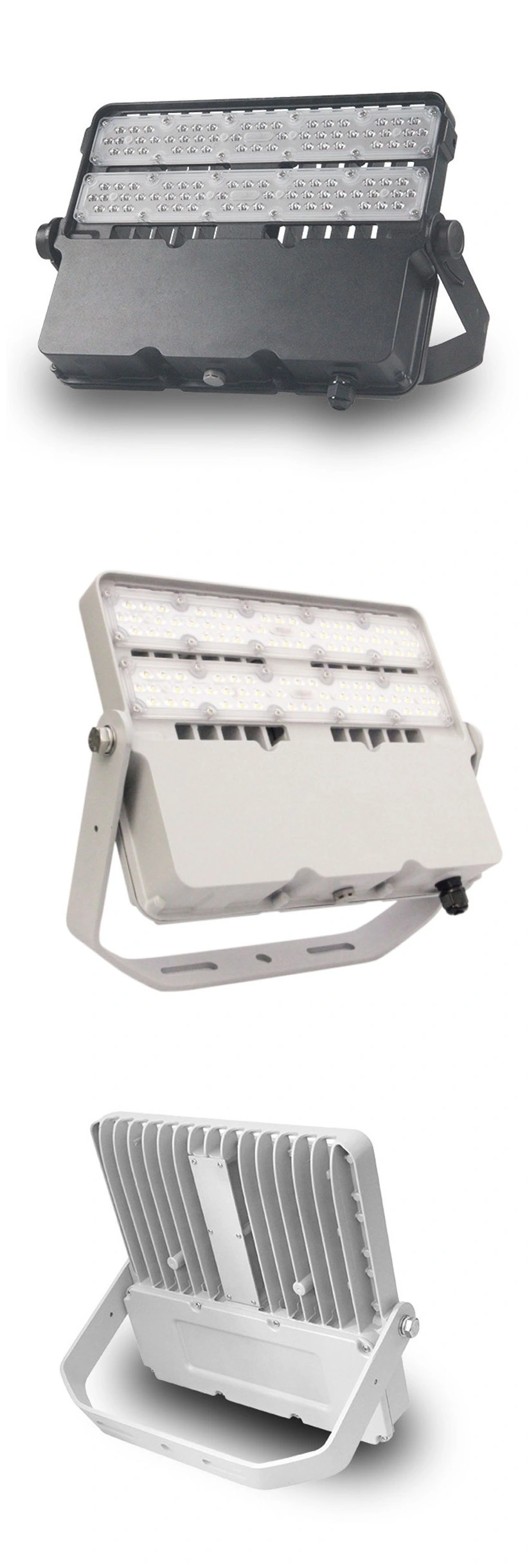

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting

Product Description

High Lumens Waterproof SMD LED Projector Light with 150lm/W for outdoor parking lot lighting

Specifications of 100W LED Flood Light :

100W LED FLood Light Main Technical Parameters
Item No.:RB-FLL-100WSE
Input Voltage:AC100-277V
Freqency Range:50Hz~60Hz
Power Factor:>0.98
Power Efficiency:>90%
LED Power100W
Power Driver:Meanwell
LED Chip:SMD3030
LED QTY: 96pcs
LED Working Voltage:DC 36~42V
System Consumption:102W
LED Luminous FluxWarm White11500LM
Pure White12000LM
Cool White12500LM
Viewing Angle:30/60/90/80*140°
Illuminance Uniformity:>0.6
Color TemperatureWarm White3000K-3500K
Pure White4000K~5500K
Cool White6000K~6500K
Color Rendering IndexRa>80
Light Distribution:LED points visible
LED Junction Temperature:≤115ºC
Working Temperature:-30ºC~55ºC
IP Grade:IP66
Working Life-span:50000 H
Power Line:1.0 m three line
Connect WireBrownL
BlueN
Yellow / GreenG
The color of the lamp shellBlack/Silver Gray
Size:365*310*60mm

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting

 LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality. Power Supply: SUPER LED Flood Lights are adopted Meanwell approved driver, IP66 and high quality, it improved lights performance. Power efficiency ≥92. Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000, 5000, 6000 Kelvin helping to enhance a building's exterior. Optics: Optical assembly: hermetically sealed providing IP66. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light. Housing: Integrated aluminum alloy die casting, honeycomb heat dissipation design. Cable: silicon rubber cable for power input. Fasten with screw in the cable gland. Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty. Certification: FCC CE RoHS approval. Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance. Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting


 Features of 100W Flood LED Light : 1.  High efficiency to meet rigorous photometric requirements.2.  System rating 50,000 hours LM80 to reduce maintenance.3.   LED Flood Light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.5.  Passed Design Lights Consortium qualifications.6.  Vented housing design isolates LED module from driver for long life and improved performance.7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.8.  Adjustable mounting bracket allows you to direct light where you need it.9.  IP66 Rated.




Primary competitive advantages of our new design LED Flood Lights as below :

1. Taiwan MeanWell drivers, SMD3030 LED chips.
2. Integrated aluminum alloy die casting radiators, honeycomb heat dissipation design, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP66 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 30/60/90/80*140° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 50W to 1000W can be chosen, 5 years warranty.

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting

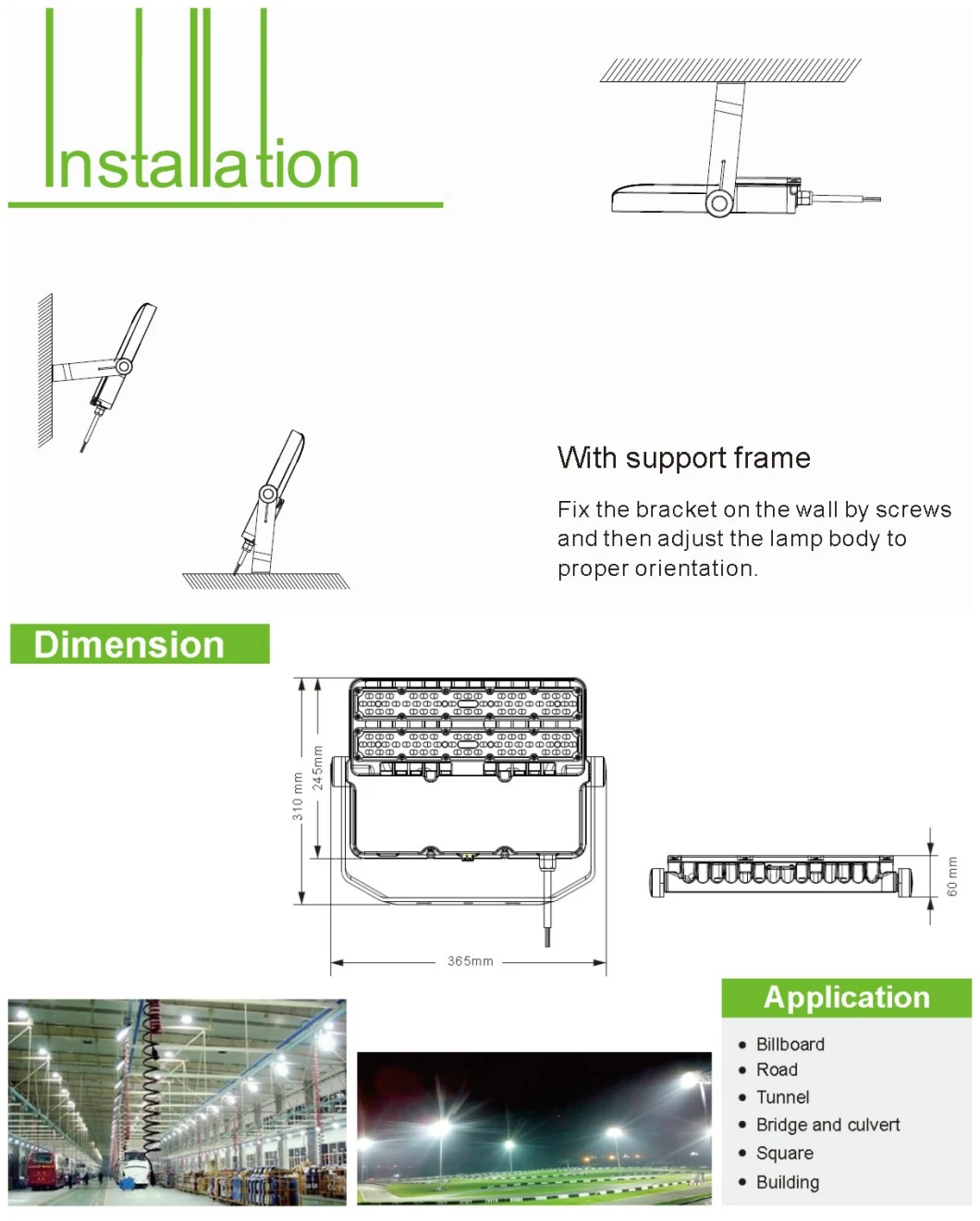

Installation information of Flood LED Light :1. Check all the parts and accessories of LED flood light;
2. Must cut off the power supply before installation;
3. Make sure the flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of flood light with power supply, then switch on the power.
5. When the flood light is working, it must be kept vertical downward.



Applications of IP66 LED Flood Light :

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting


Strict Tests of LED Flood lighting :Before shipping, all the LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.
 Packaging of flood Light LED :

Our individual package maximize protecting the flood lights from transfer damage in transit.
1. Label on backside of each flood light and your required label is available.
2. One piece led flood Light per carton.
3. This is our regular packing of the led flood light, if you need, we can also custom your own color packing and put your logo on it.Shipping of LED flood lamps : By sea,air,express (DHL,FedEX,UPS,TNT etc.)Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Small quantity advised to be shipped by air.

High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting


Rayborn Good Service:1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.

Company Information :

Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,LED High Bay Light,Led Ceiling light,LED Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
4
High Lumens Waterproof SMD LED Projector Light with 150lm/W for Outdoor Parking Lot Lighting




FAQ:Q1: What is the warranty of your led flood lights?
A:  We offer 5 years guarantee for our LED flood lights,and we will offer you based on your requirements.

Q2: What color temperature we can choose?
A:  We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K

Q3: Do your led flood lamps can be used in our country?
A: Yes, Our LED flood lamps have wide input voltage AC85-265V, and it can be customized too.

Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.

Q5: Do you have any MOQ limite?
A: We don't have MOQ,even only one piece LED flood light you can buy. Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.  Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.

Contact us if you need more details on LED Flood Lamp. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Parking Lot Lighting、LED Flood Fixture. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : LED FLood Light
