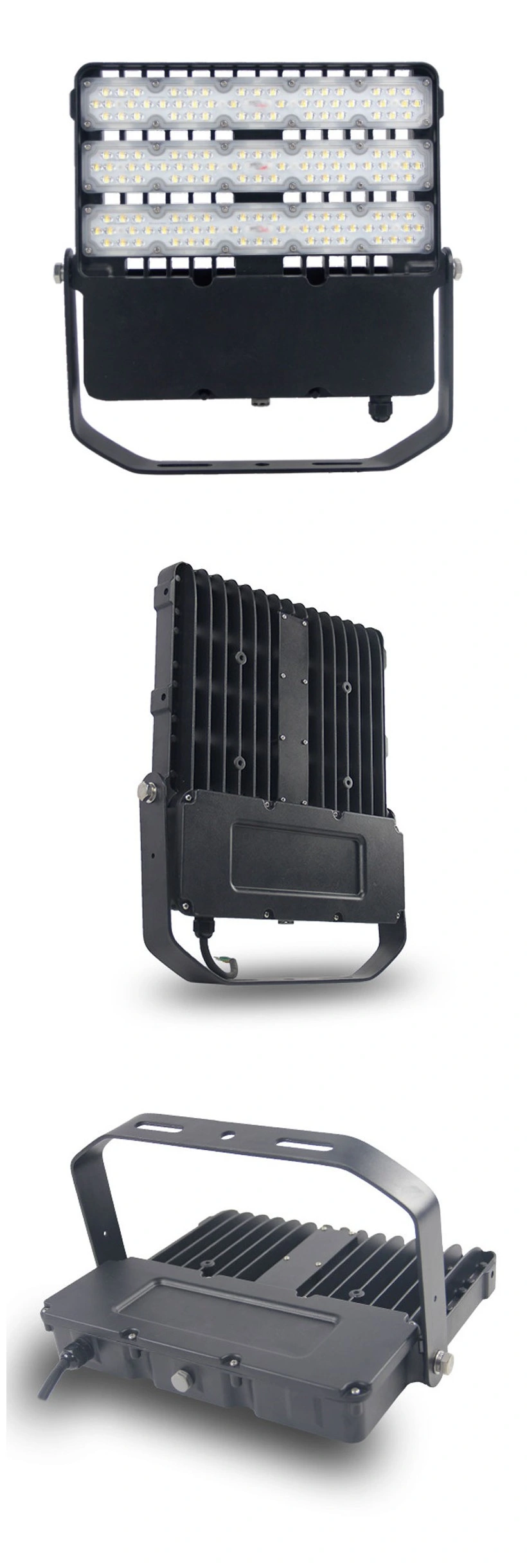

Several Angles SMD LED Floodlight 150W with Ce Meanwell Driver
Specifications of 150W LED Flood Light :
|150W LED Floodlight Main Technical Parameters|
|Input Voltage:||AC 100-277V|
|LED Working Voltage:||DC30 ~36V|
|LED Luminous Flux||Warm White||17700LM|
|Color Temperature||Warm White||3000K~3500K|
|Color Rendering Index||Ra>80|
|Light Distribution:||LED points visible|
|Light Design:||LED+The secondary light distribution lens|
|LED Junction Temperature:||≤115ºC|
|Working Life-span:||50000 H|
|Power Line:||1.0 mm² three line|
|Yellow / Green||G|
|The color of the lamp shell||Black/Silver Gray|
LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality. Power Supply: SUPER LED Flood Lights are adopted Meanwell UL approved driver, IP66 and high quality, it improved lights performance. Power efficiency ≥92. Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000, 5000, 6000 Kelvin helping to enhance a building's exterior. Optics: Optical assembly: hermetically sealed providing IP66. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light. Housing: Integrated aluminum alloy die casting, honeycomb heat dissipation design. Cable: silicon rubber cable for power input. Fasten with screw in the cable gland. Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty. Certification: DLC FCC CE RoHS approval. Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance. Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Features of 150W Flood LED Light : 1. High efficiency to meet rigorous photometric requirements.2. System rating 50,000 hours LM80 to reduce maintenance.3. LED FLood Light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.4. LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.5. Passed Design Lights Consortium (DLC) qualifications.6. Vented housing design isolates LED module from driver for long life and improved performance.7. Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.8. Adjustable mounting bracket allows you to direct light where you need it.9. IP66 Rated.
Primary competitive advantages of our new design LED Flood Lights as below :
1. Taiwan MeanWell drivers, SMD3030 LED chips.
2. Integrated aluminum alloy die casting radiators, honeycomb heat dissipation design, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP66 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 30/60/90/80*140° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 50W to 1000W can be chosen, 5 years warranty.

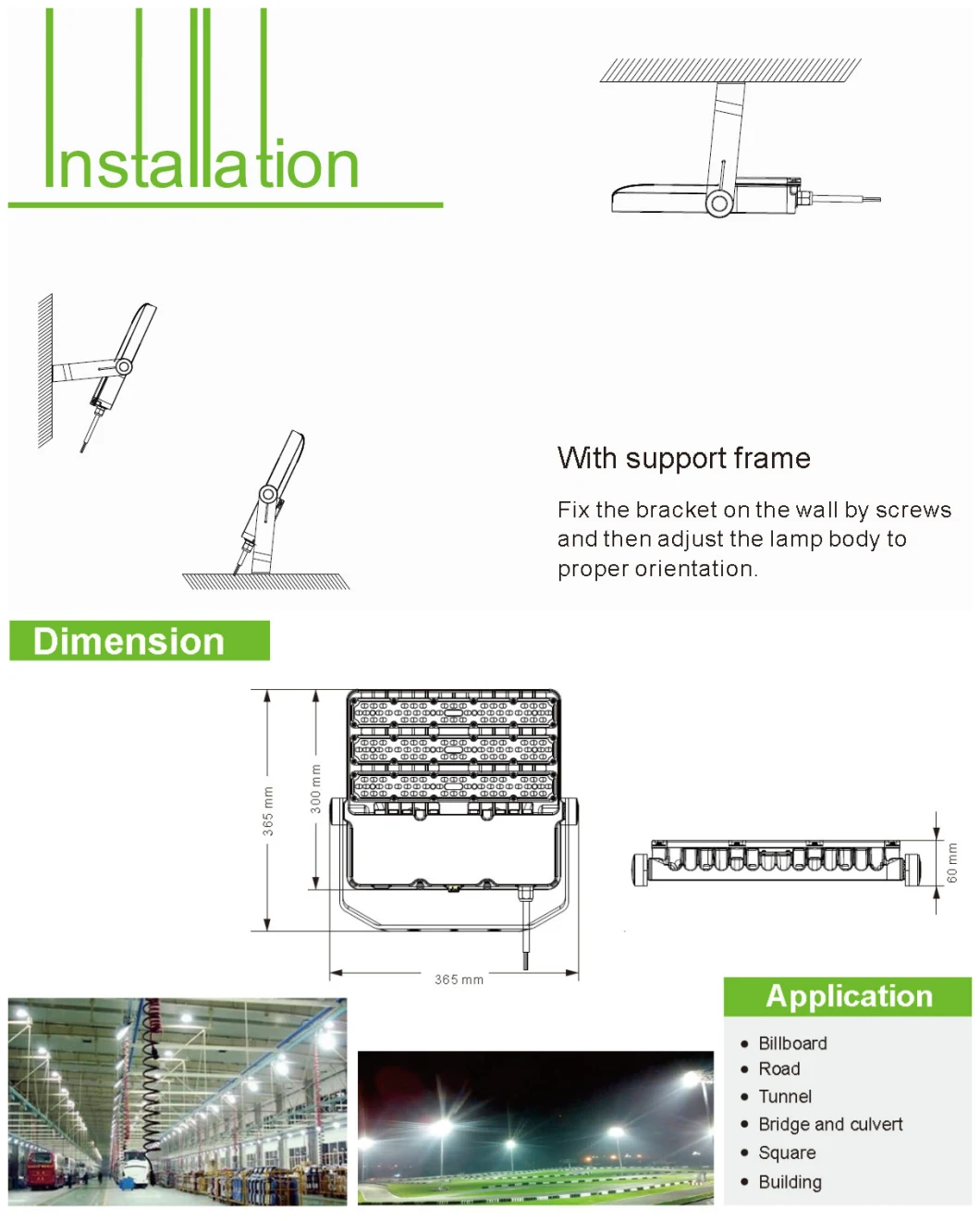

Installation information of Flood LED Light :1. Check all the parts and accessories of LED Flood Light;
2. Must cut off the power supply before installation;
3. Make sure the flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of flood light with power supply, then switch on the power.
5. When the flood light is working, it must be kept vertical downward.
Applications of IP66 LED Flood Light :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
Strict Tests of LED Flood lighting :Before shipping, all the LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Packaging of flood Light LED :
Our individual package maximize protecting the flood lights from transfer damage in transit.
1. Label on backside of each flood light and your required label is available.
2. One piece led flood Light per carton.
3. This is our regular packing of the led flood light, if you need, we can also custom your own color packing and put your logo on it.
Shipping of LED flood lamps : By sea,air,express (DHL,FedEX,UPS,TNT etc.)Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
Rayborn Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
Company Information :
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,LED High Bay Light,Led Ceiling light,LED Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
Q1: What is the warranty of your led flood lights?
A: We offer three years guarantee for our LED flood lights,and we will offer you based on your requirements.
Q2: What color temperature we can choose?
A: We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do your led flood lamps can be used in our country?
A: Yes, Our LED flood lamps have wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limite?
A: We don't have MOQ,even only one piece LED flood light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted. Please don't feel hesitate to contact us if our products hit your requirements. Pls give me one enquiry, I will give you ten surprises. Believe me, I am sincere Charmaine. Contact us if you need more details on LED Flood Lighting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Flood Luminaire、LED Spotlight. If these products fail to match your need, please contact us and we would like to provide relevant information.
